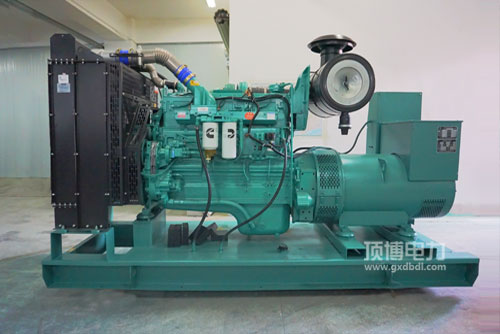

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用发起机汽柴油城市发展性好: 最新的汽柴油调节体系，独特的STC、ESTC 等级分类调节体系，特殊化设计制作的缸筒上端点燃室，高压电喷洒汽柴油，有力做雾化，点燃有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用发起机瞬态效果非常好: 极致的发起机大体设定，互相配合康明斯现代感的EFC软件系统，控制高精准值高，积极地响应用时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用汽车发倾向升耗油率高: 总布局开发密集.外观简约时尚搭建适当，电脑运行平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50需要满足中国人非主干道再者第一阶段及北美洲Tier2. Tier 3排放口规范标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件必须性好， 汽车发动因运作及保障维修生活便利，的价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率範圍 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯生产发电用打着机的结构特征：空间小， 文件压缩变高， 除雾器气氛煮沸，有利发动，移动端车载导航电原的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机型號	经常用工作电压(kW)Prime Power	应急最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
